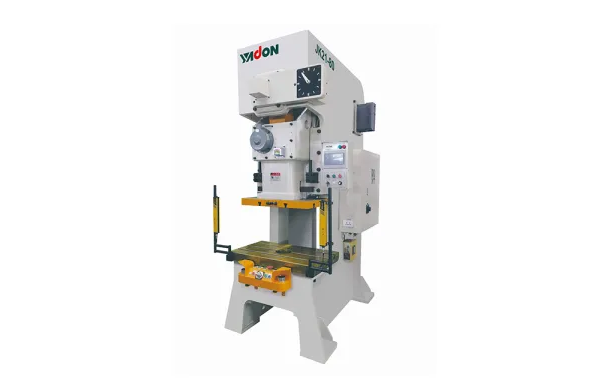

Máy Dập Trục Khuỷu Đơn JK21 Series

Model Techbical Data Items			JK21-25		JK21-45		JK21-60		JK21-80		JK21-110		JK21-160		JK21-200		JK21-260
			L	S	L	S	L	S	L	S	L	S	L	S	L	S	L	S
Nominal Pressure		KN	250		450		600		800		1100		1600		2000		2600
Nominal Pressure Stroke		mm	3.2		3.2		4		5		5		6		6		6.5
Stroke of Slide		mm	60	30	80	50	120	60	150	70	180	80	200	90	200	100	250	150
Stroke		S.P.M	60-140	130-200	40-100	100-160	35-90	90-120	35-80	80-120	30-60	60-90	20-50	40-80	20-50	40-75	20-40	40-50
Max.Die Set Height		mm	200	215	250	265	310	340	340	380	360	410	460	510	450	510	500	550
Die Height Adjustment		mm	50		60		75		80		80		100		110		120
Depth of Throat		mm	155		225		255		280		305		405		415		430
Distance Between Uprights		mm	418		502		526		534		616		660		800		890
Size of Table	L-R	mm	470		560		700		770		910		990		1130		1130
	F-B	mm	230		300		360		420		470		550		630		700
Hole for Punch Shank		mm	40		40		50		50		50		65		65		65
Size of Table	L-R	mm	680		850		900		1000		1150		1250		1400		1500
	F-B	mm	300		440		500		550		600		800		820		840
	Thickness	mm	70		80		80		90		110		140		160		180
Blank Hole	L-R	mm	240		300		320		360		400		440		480		520
	F-B	mm	120		150		160		180		200		220		240		260
Main Motor Power		KW	4		5.5		5.5		7.5		11		15		18.5		22
