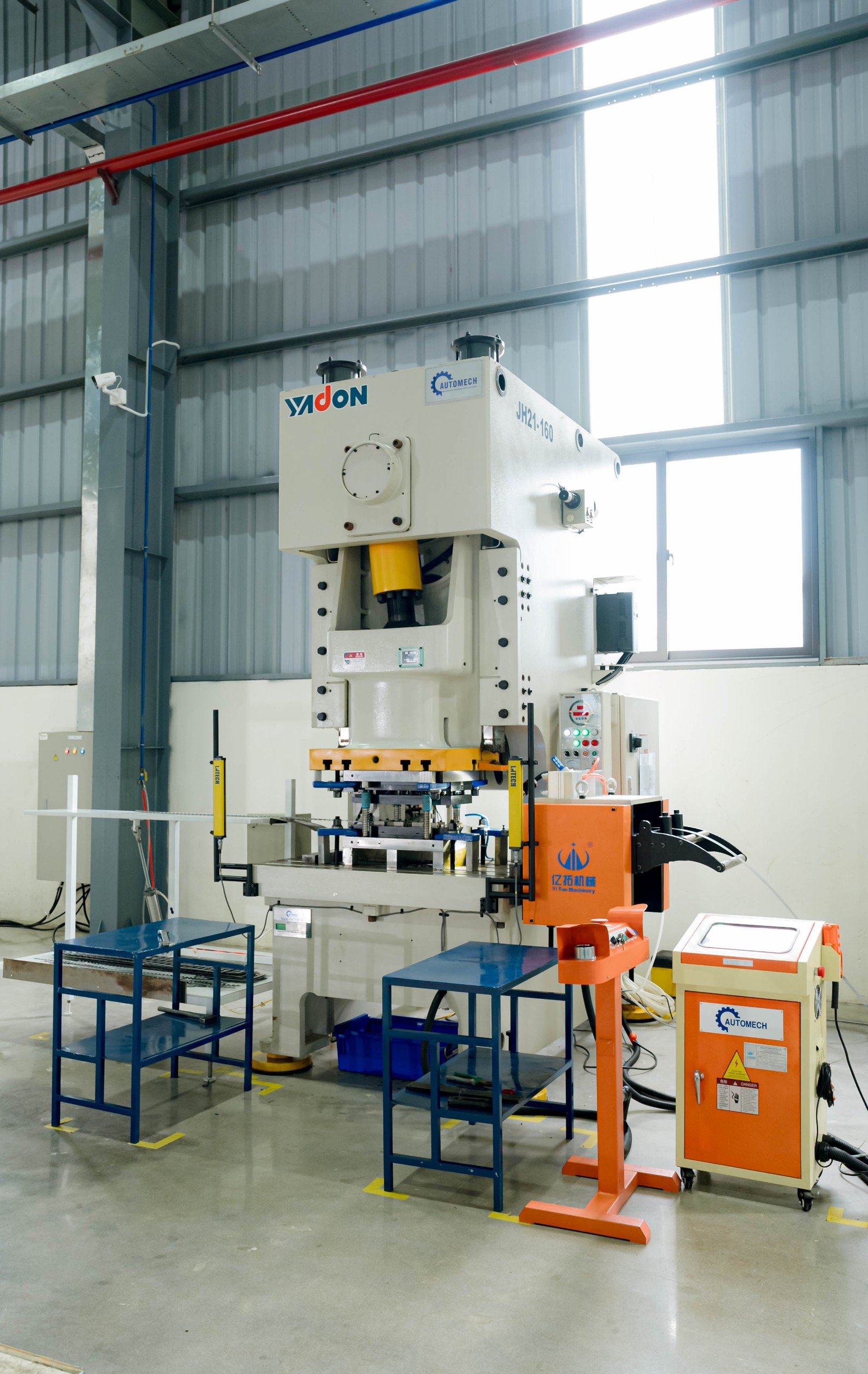

Máy dập trục khuỷu khung C – JH21 Series

Items Technical Data Model			JH21-25		JH21-45		JH21-60		JH21-80		JH21-110		JH21-125		JH21-160		JH21-200		JH21-250		JH21-315		JH21-400
			L	S	L	S	L	S	L	S	L	S	L	S	L	S	L	S	L	S	L	S	L	S
Nominal Pressure		KN	250		450		600		800		1100		1250		1600		2000		2500		3150		4000
Nominal Pressure Stroke		mm	2.8		3.2		4		4.5		5		5		6		6		7		8		8
Stroke of Slide		mm	80	50	100	70	120	80	140	90	160	100	160	100	180	110	200	130	220	150	250	180	250	180
Stroke	Variable	S.P.M	70~100	80~130	60~90	70~110	50~80	60~100	40~75	50~90	35~70	45~80	35~65	45~80	30~55	35~70	25~50	30~60	25~45	30~50	25~40		25~35
	Single	S.P.M	90	110	80	100	70	90	60	80	60	80	55	70	50	60	45	50	40	45	35		30
Max.Die Set Height		mm	250	265	270	285	300	320	320	345	350	380	370	400	400	435	450	485	500	535	550	585	550	585
Die Height Adjustment		mm	50		60		70		80		90		90		100		110		110		120		120
Depth of Throat		mm	210		230		270		290		350		370		390		420		430		430		430
Distance Between Uprights		mm	450		500		520		600		680		710		720		830		850		1000		1000
Bottom Size of Slide	L-R	mm	360		410		480		560		620		620		700		850		880		950		950
	F-B	mm	250		340		400		430		520		520		580		650		700		700		700
Hole for Punch Shank	Diameter	mm	Φ40		Φ50		Φ50		Φ60		Φ70		Φ70		Φ70		Φ70		Φ70		Φ70		Φ70
	Depth	mm	60		60		60		80		80		80		100		100		100		100		100
Size of Table	L-R	mm	710		810		870		1000		1100		1120		1260		1400		1500		1650		1800
	F-B	mm	400		440		520		560		680		720		760		820		840		840		840
	Thickness	mm	70		80		90		100		110		120		140		160		180		180		180
Size of Opening in Table	Diameter	mm	Φ100		Φ150		Φ150		Φ150		Φ160		Φ160		Φ180		Φ200		Φ250		Φ250		Φ250
Single Speed Motor Power		KW	3		5.5		5.5		7.5		11		11		15		18.5		22		30		37
